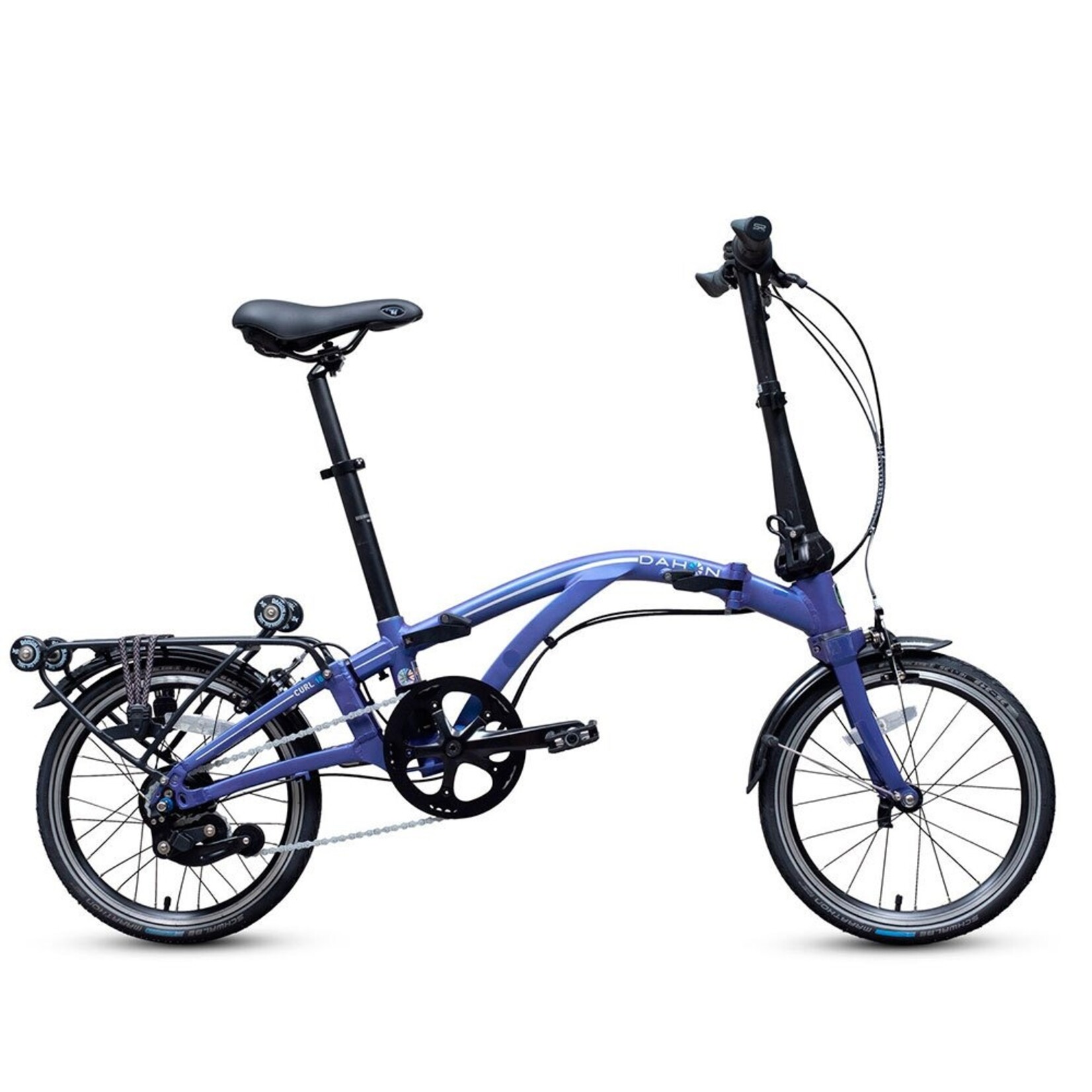

Dahon Curl i8 Folding Bike

C$2,000.00 C$1,400.00 Excl. tax

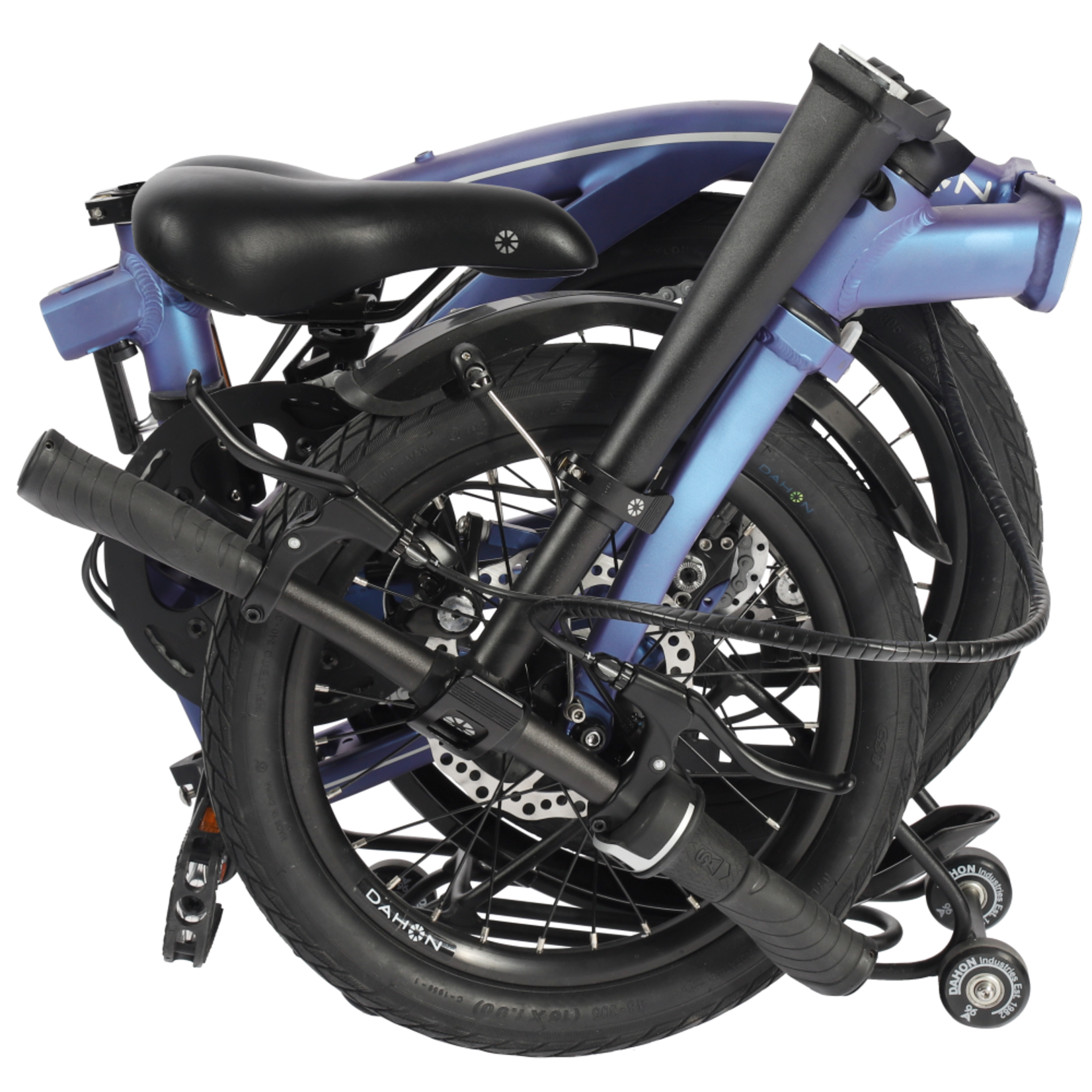

The CURL i8 features three-point folding in a hydroformed alloy frame. Double down-tubes approach a front triangle and the V-shaped coupling between the front and rear triangles turns the bike into a hard-tail.

NOTE: Shipping not included in price.

In stock (1) (Delivery timeframe:. For online purchases, Fairfield Bikes will contact you regarding shipping costs.)

The CURL i8 features three-point folding in a hydroformed Dalloy frame with oversized rectangular tubes, as well as a rear wheel flip-fold. Double down-tubes approach a front triangle and the V-shaped coupling between the front and rear triangles turns the bike into a hard-tail. The bike also features strong removable pedals and a roller rack for easy wheeling when folded. A telescopic handlebar post and seat post allow for ergonomic adjustment for riders between 150 and 190cm.

Wheel Size 16"
Weight 13.45kg
Folded Size 54x28x58cm
Model No. CUA645H
Frame DAHON Patented Flip Frame with Autolatch, Dalloy Aluminum, Suspension Rear Built-In Carrier/Roller
Fork Dalloy aluminum, integrated patented Fusion technology
Handlepost Radius Telescope, adjustable, patented Fusion and V-Clamp technologles, forged aluminum
Drivetrain

Cranks DAHON Custom 3/32" x 46T x 170 mm

8 speed Nexus hub
Bottom Bracket Sealed Bearing
Chain KMC Z1
Cassette STURMEY-ARCHER 16 Tooth
Front Hub DAHON Custom 100mm , 28 Hole, Disc
Pedals Quick Draw Quick Release 1pc Alloy Body

Wheels Rims 16" Lightweight Aluminum Double Wall
Spokes 14 g Stainless Steel
Tires DAHON Custom 16"*1.90" (48-305)
Rider height 150-190 cm
Max Rider Weight 150 kg
Other Bottom Bracket Sealed Bearing
Front Derailleur n/a
Rear Derailleur n/a
Handlebar DAHON Urban 540 mm Wide
Grips DAHON Ergo Comfort
Headset Fusion, Zero Stack, Cartridge Bearing
Brakes DAHON Custom Disc
Brake Levers DAHON Custom Brake Levers
Saddle DAHON Ergo Comfort
Seatpost DAHON Custom 6061 Aluminum, 33.9 mm x 450 mm
